Keycloak

# Keycloak
<img class="centerImage" src="./img/keycloak_icon_512px.png" alt="Keycloak" style="width: 40%;"/>

Note:
    http://webpro.github.io/reveal-md/
    reveal-md Readme.md  -w
    # add C:\Program Files (x86)\Nodist\bin\node_modules\reveal-md\lib\print.js "" over ${printPluginPath}
    reveal-md Readme.md --static ./docs
    "http://localhost:1948/archi.keycloak.prez.md?print-pdf" => print chrome

----
## RH-SSO

RedHat supported version of Keycloak.

----
* Production ready
    * compatibility
* Maintainability
    * 1 minor release a year (2019- 7.3)
    * 3 major releases a year (2019 - 7.0, 6.0, 5.0)

---
## Why delegate security layer?

----
* Open source
* security skills
* extended features
* provided updates

Note:
    Gatekeeper
    I'm expert i code my login page for mobile apps, Kerberos
    expert not infallible

----

* Cost
    * integration over development
    * configuration

---
## IAM: security component

Note:
    IAM
----

* Authentication (AuthN)
* Authorization (AuthZ)
* Auditing
* Administration

Note:
    identification
    role
    Traçabilité
    Maintenabilité
----
### Definition

* Single Sign On (SSO)
* Single Log Out (SLO)
<img class="centerImage" src="./img/sso.png" alt="Keycloak" style="width: 60%;"/>

----
## Authentication/Authorization mechanisms

----

### Basic Auth

<img class="centerImage" src="./img/kilt.jmg.jpg" alt="Keycloak" style="width: 60%;"/>
----

* Easy integration

*Authorization Basic Base64(user:password)*

----
* 1 query -> 1 authentication check
    * DDoS attack
* Unencrypted password (HTTPS)
    * Password interception
* Authorization only

----

## OAuth 2.0

----
* Released in 2006: 2.0
* Oriented simplicity

Note:
    IETF OAuth Working Group.

----
* High security flows
    * use token (limited lifetime)
    * n queries -> 1 password transmission
* 1 query -> 1 token check

----
* JSON Web Tokens

```
eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.
eyJzdWIiOiIxMjM0...iaWF0IjoxNTE2MjM5MDIyfQ.
SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c
```

----
```
{
  "alg": "HS256",
  "typ": "JWT"
}
{
  "sub": "1234567890",
  "name": "John Doe",
  "admin": true
}
HMACSHA256(
  base64UrlEncode(header) + "." +
  base64UrlEncode(payload),
  secret)
```

----
* Large adoption

Google, Facebook, ...

----
* More complex to integrate
* No authentication information
    * No SSO or SLO
    * No standard API for identity

----
### OpenID Connect

<img class="centerImage" src="./img/openidConnect.jpg"  style="width: 40%;"/>
----

* Developed by OpenID Foundation
    * modern use cases
* Released in 2014: 1.0
* OpenID Connect is an identity layer on top of the OAuth 2.0.

Note:
    SPA
    Mobile
    Microservice

----

* OAuth 2.O
* IDToken (JWT tokens) (user info  + API)
* Discovery and self registration
* SSO/ SLO
* Back/Front channel
* Identity broker (google, delegation)
* n query -> 1 password transmission
* 1 query -> authorization + authentication

Note:
    JWT -> pronounce JOT
    integrity no confidential

----

* More complex to integrate

----

### Security Assertion Markup Language 2.0

* Developed by OASIS (consortium)
* Released in 2005: 2.0
* Authentication (AuthN)
* Authorization (AuthZ)

----
* Tested and feedback

* Complex to integrate

---

## Supported mechanisms
----

* OAuth 2.0
* SAML 2.0
* OpenID Connect 1.0

---

## Focus on OIDC

----

### Glossary
----

#### Elements
----

##### Realm

Note:
    Territoire
    Who are you? Rights ? Dress code
----

##### Client

Note:
    Configuration liée à une application ou une famille d'appli

----
##### Role

Note:
    Droit

----
##### Claims

Note:
    Attribut déclaré
    2FA phone number
    ##### Scope
    <img class="centerImage" src="./img/scope.png"  style="width: 30%;"/>

----

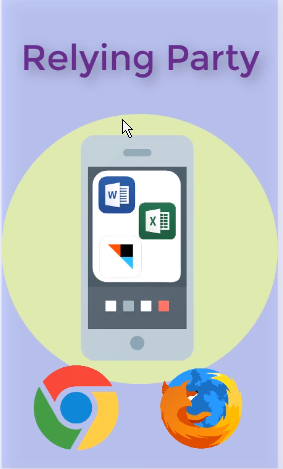

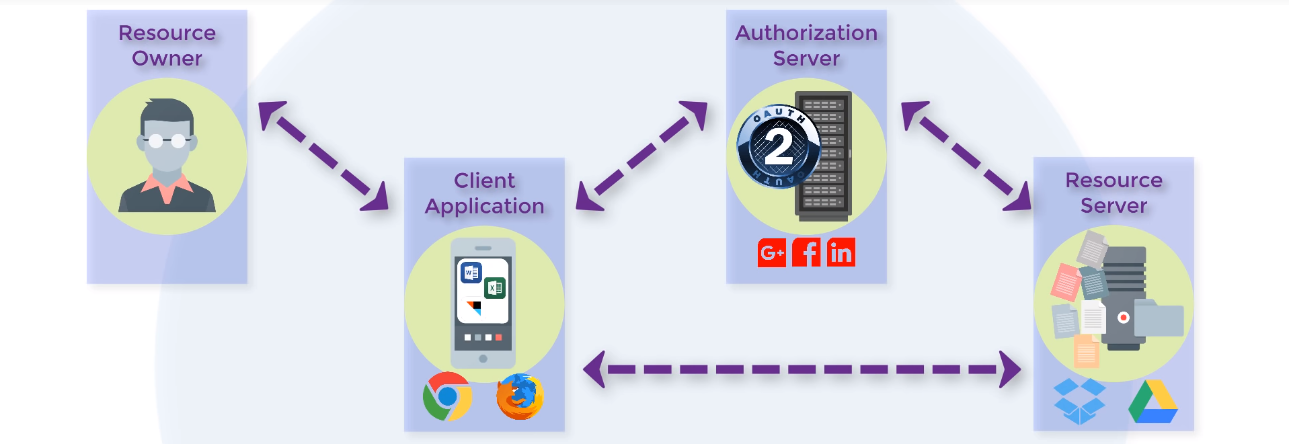

#### OIDC actors
----

Note:
    Consommateur ou propriétaire de la resource
----
<img class="centerImage" src="./img/RelyParty.png"  style="width: 30%;"/>

Note:
    Façade gérant le flux d'authentification
----
<img class="centerImage" src="./img/ResourceServer.png"  style="width: 30%;"/>

Note:
    Serveur de ressources (confonfu avec le RP)

----

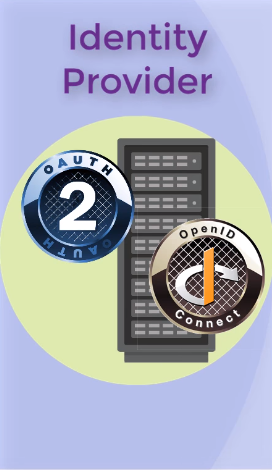

<img class="centerImage" src="./img/IdentityProvider.png"  style="width: 30%;"/>

Note:
    Keycloak: gestionnaire
    https://www.youtube.com/watch?v=6DxRTJN1Ffo
    https://www.youtube.com/watch?v=1ZX7554l8hY

----

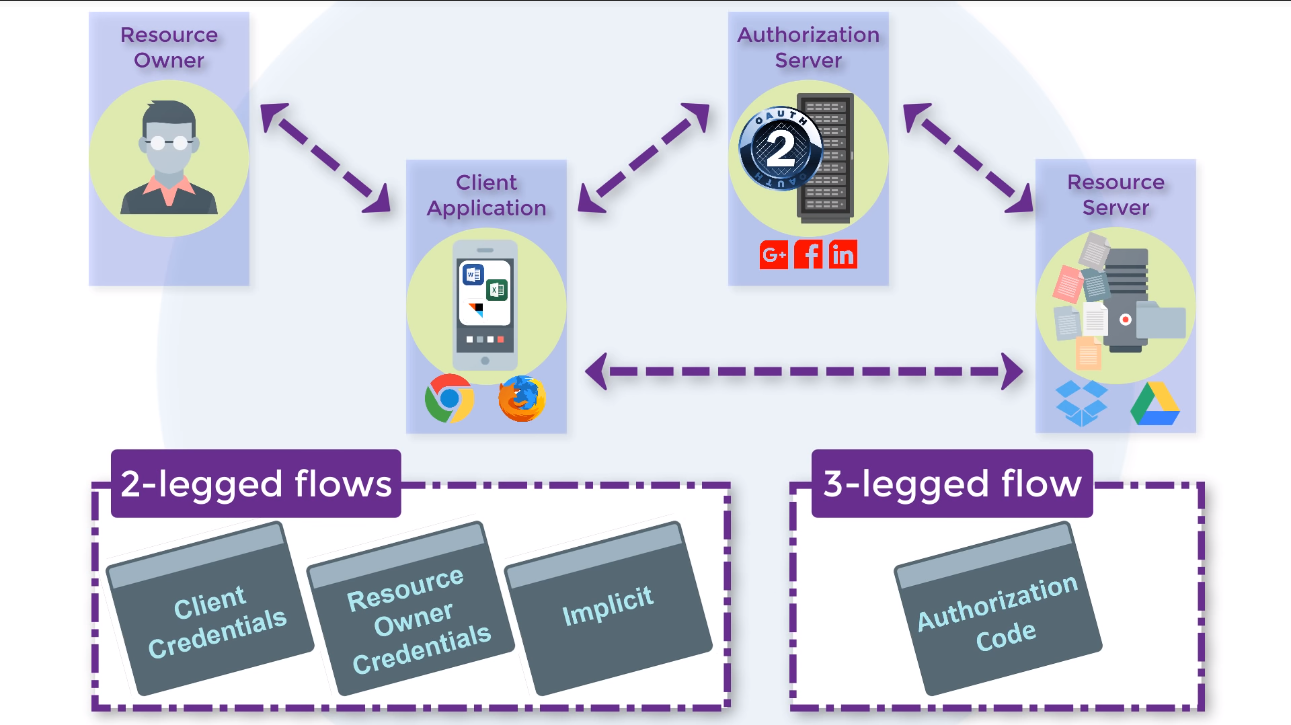

### OIDC Grants

Note:
    acteurs communiquent pour former un processus d'authentification et d'authorisation

----

Note:
    2 étapes ou 3 étapes

----

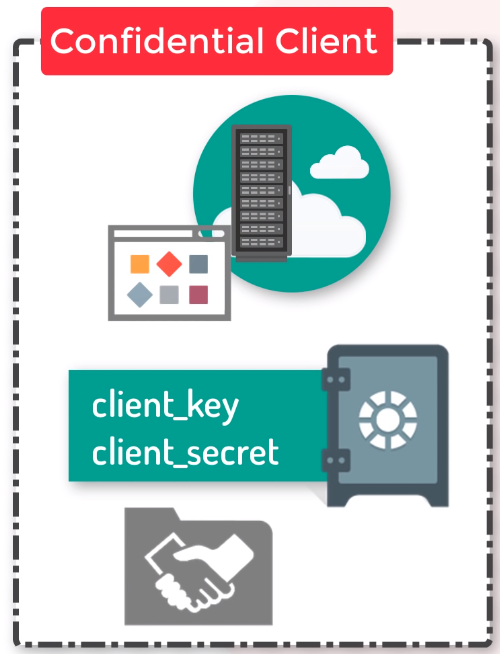

#### Access type
----

----

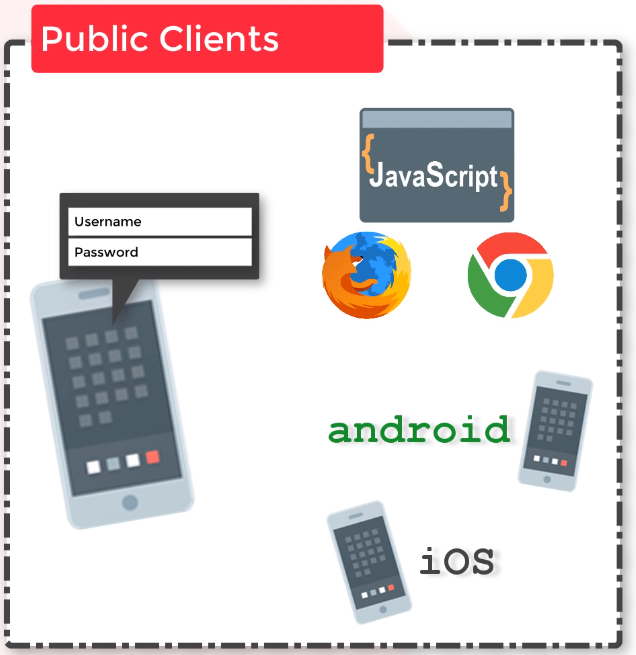

<img class="centerImage" src="./img/public.png"  style="width: 60%;"/>
----

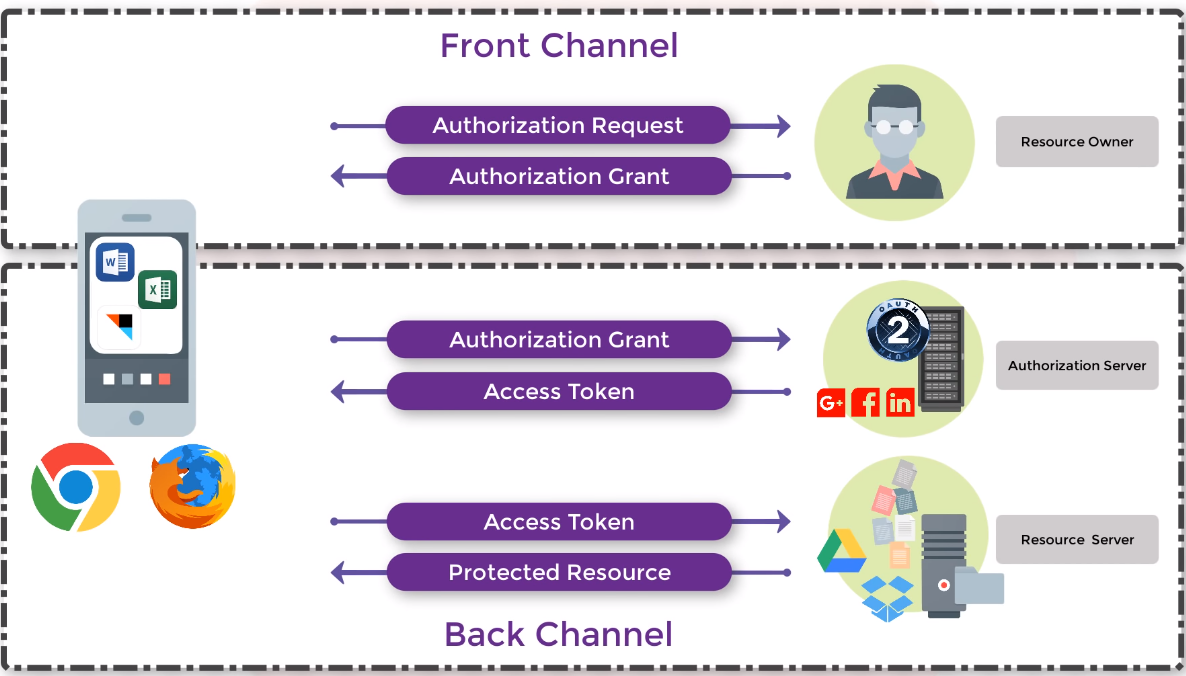

#### Channel
----

----

### Grants

----

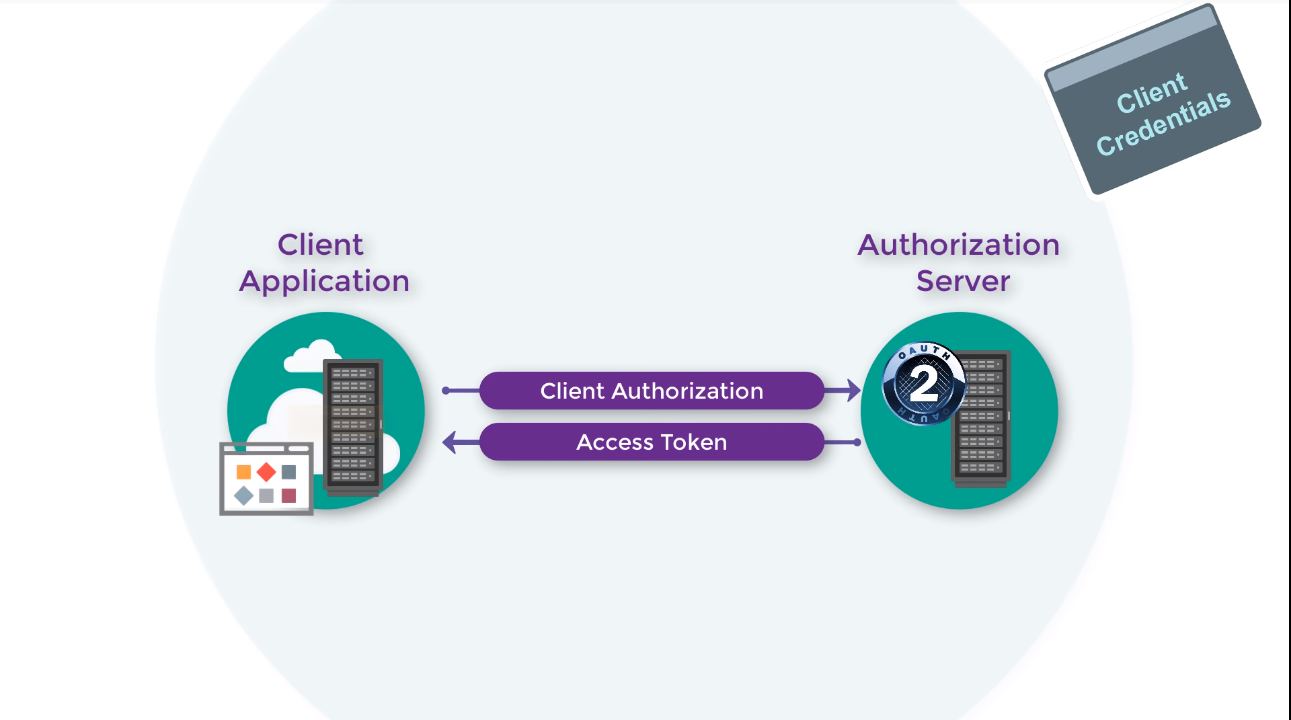

### Client credentials (2)

Note:
    compte de service
    client -> confidential -> secret

----

```

- post:
    url: "/auth/realms/{{ realm }}/protocol/openid-connect/token"
    body:   'grant_type=client_credentials&
            client_id={{ cliendId }}&
            client_secret={{ secret }}'
    capture:
    - json: "$.access_token"
    - json: "$.refresh_token"
```

Note:
    access token
    refresh token

----

```
- post:
    url: "/auth/realms/{{ realm }}/protocol/openid-connect/userinfo"
    headers:
      "Authorization": "Bearer {{ access_token }}"
```

----

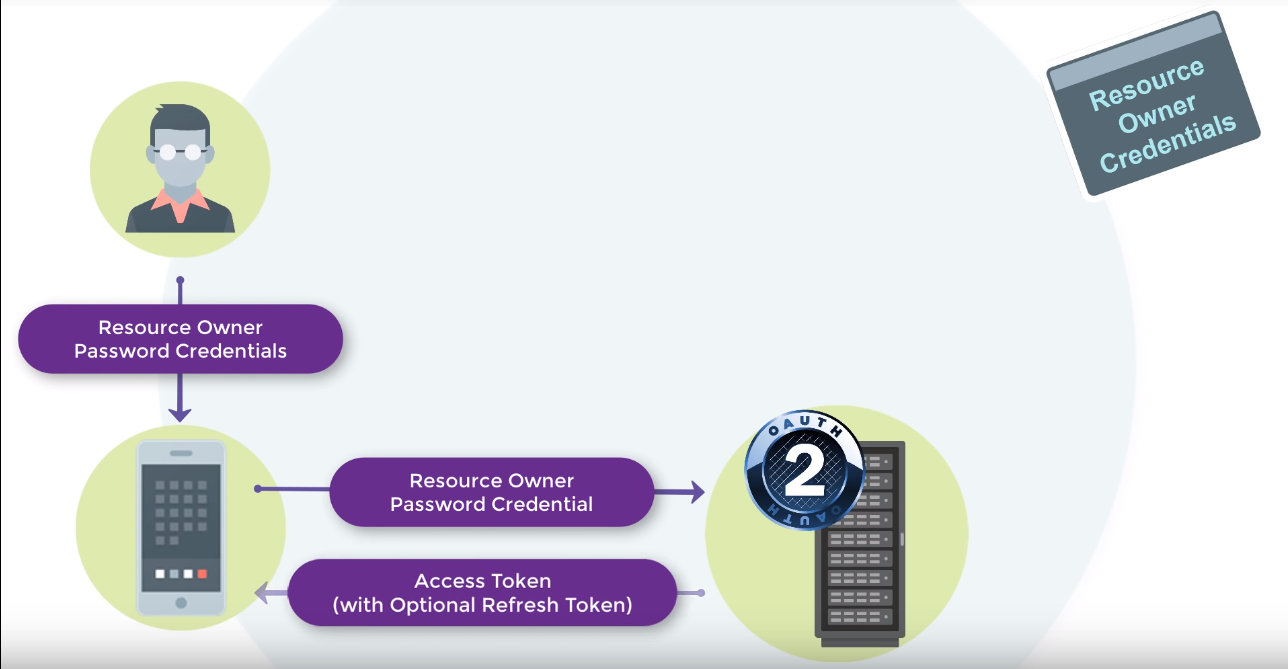

### Resource owner credentials (2)

grant_type: password

Note:
    Legacy compatibility
    Basic auth

----

<img class="centerImage" src="./img/resourceGrant.png"  style="width: 100%;"/>
----

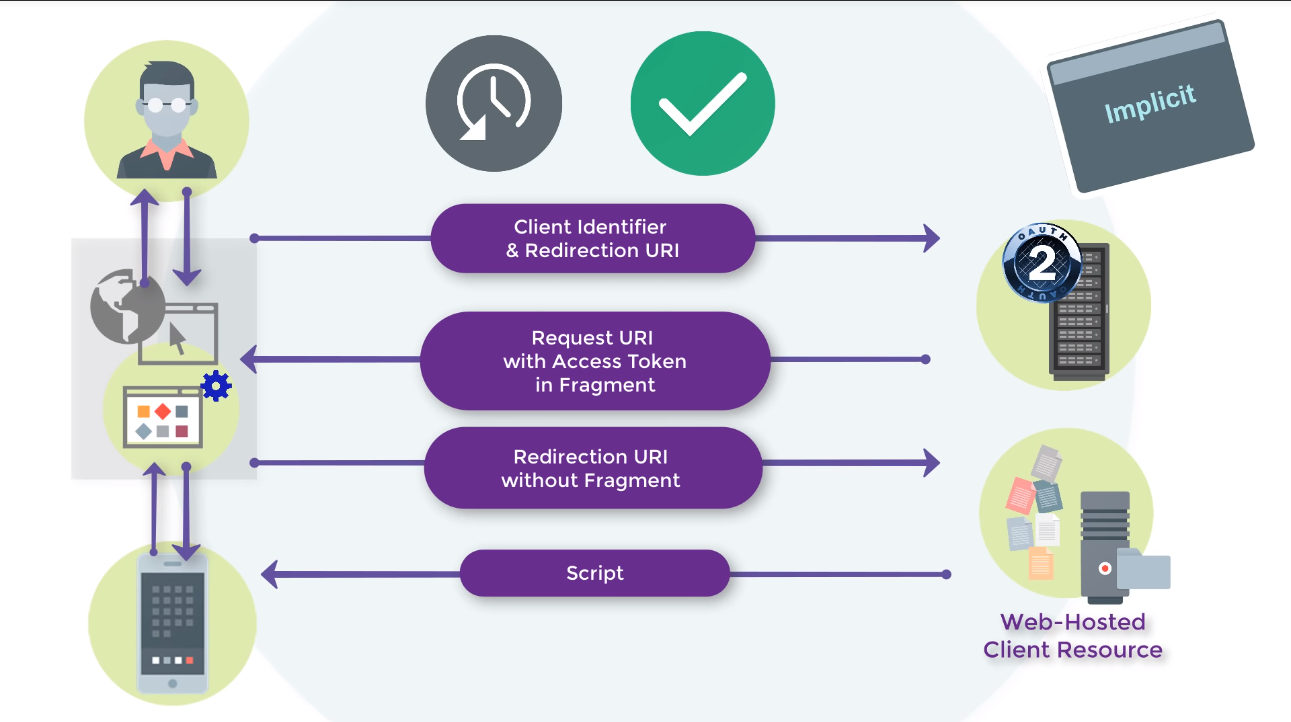

### Implicit (2)

Note:
    Access token + IDToken direct
    without refresh token
    token in redirect_uri

----

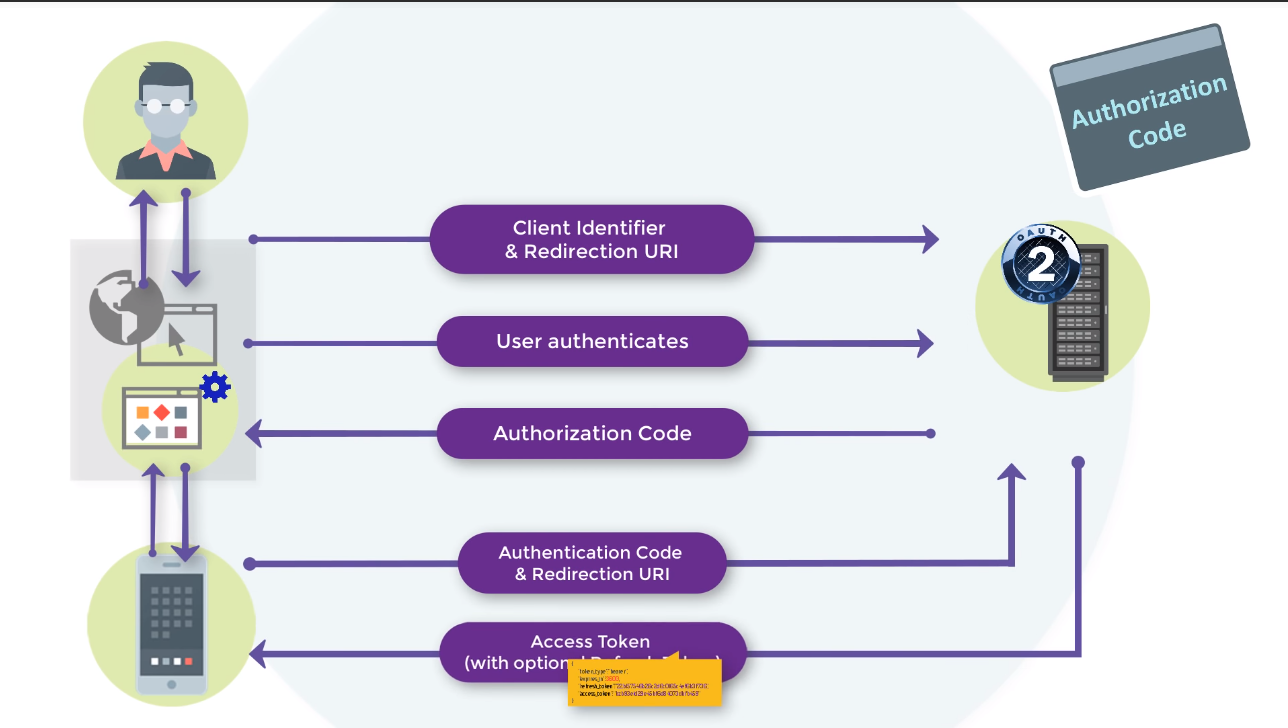

### Authorization Code (3)

----

[Demo](https://openidconnect.net/)

Note:
    admin https://xxx/auth/admin/master/console/#/realms
    Config:
        https://xxx/auth/realms/demo/protocol/openid-connect/auth

https://xxx/auth/realms/demo/.well-known/openid-configuration
        client: public
    https://tools.ietf.org/html/rfc7517
    * kid: identifiant de la clé
    * access
    * refresh
    * IDToken
    * Offline Token
    * Claims
    --> Hybrid
    Implicit / Authorization
    The authorization server will respond with both a code (which the client can exchange for tokens on a secure channel) and a token. A common use case for the hybrid flow is using the code to get an access token on the server, and directly consuming an ID token on the client.

---

### Integration guideline

----

##### Flow

----

|                   | Authorization code | Client  credentials | Resource owner
|---                | ---                | ---                 | ---
|Web App (Template) |        |                     |
|SPA                |              |                     |
|Backend (API)      |                    |               |
|Mobile             |        |                     |
|CLI                |                    |                     |
